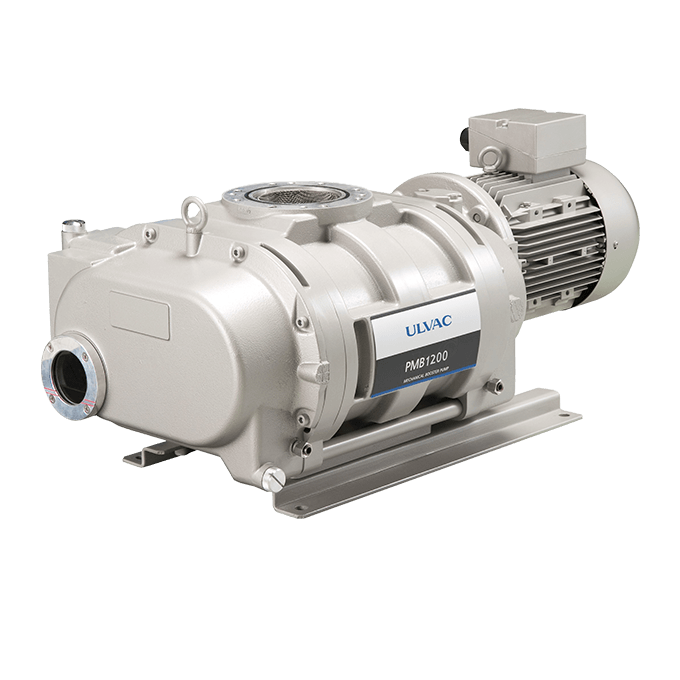

The PMB series Ver. D is a wide use mechanical booster pump with multiple voltage motor (high efficiency). It is possible to run with air-cooled depending on use condition. And surface treatment and atmospheric operation type are selectable as option.
Model | PMB100D | PMB300D | PMB600D | PMB1200D | PMB2400D | ||
Maximum pumping speed m3/h(L/min) | 50Hz | m3/h | 95 | 280 | 500 | 1000 | 2500/2000 |
L/min | 1580 | 4670 | 8330 | 16667 | 41667/33330 | ||
60Hz | m3/h | 115 | 330 | 600 | 1200 | 3100/2400 | |
L/min | 1920 | 5500 | 10000 | 20000 | 51667/40000 | ||
Maximum suction pressure Pa | 50Hz | 9.3×103 | 1.2×103 | 1.3×103 | 2.0×103/8.0×102 | ||
60Hz | 6.2×103 | 9.3×102 | 1.1×103 | 1.5×103/6.7×102 | |||
Maximum allowable differential pressure Pa | 50Hz | 8.0×103 | 4.0×103 | 7.3×103 | 3.5×103/4.7×103 | ||
60Hz | 5.6×103 | 3.3×103 | 6.0×103 | 3.0×103/4.7×103 | |||
Ultimate Pressure Pa | 4.0×10-1 | 6.7×10-1 | |||||
Allowable drive pressure Pa | ~1.0×105(atmospheric pressure start type) | ||||||
Motor | poleskW | 0.4(2) | 0.75(2) | 2.2(2) | 3.7(2) | 7.5(2) | |
200V class V | 50Hz | 200 | ー | ||||
60Hz | 200/220 | ー | |||||
Multiple voltage V | 50Hz | 220~240/380~415 | 200~240/380~415 | ||||
60Hz | 208~240/380~460 | 200~240/380~460 | |||||
Oil | ULVOIL R-4 | ||||||
Oil capacity L | 0.35 | 0.7 | 1.5 | 1.9 | 4.0 | ||
Cooling method | Air-cooling | Air-cooling/Water-cooling | |||||
Cooling water | Primary side pressure MPa | ー | 0.3 | ||||
Inlet/outlet differential pressure MPa | ー | 0.05 | |||||
Volume L/min | ー | 2 | 3 | ||||
Temprature ℃ | ー | 5~30 | |||||
Inlet connection JIS-B-2290 | VG50(optional) | VG80(optional) | VG100(optional) | VG200(optional) | |||
Outlet connection JIS-B-2290 | VF50(optional) | VF80(optional) | VF200(optional) | ||||
Dimensions W×D×Hmm | 267×576×180 | 321×685×260 | 362×784×320 | 417×970×340 | 520×1260×460 | ||
Weight kg | 26 | 51 | 82 | 115 | 260 | ||
Standard roughing pump | VD401 | VD601 | VD901 | VS2401 | VS650/PKS-070 | ||
Applicable standard | CE、cTUVus | ||||||
Optional | Surface treatment, adapter flange, explosion proof motor *9,atmospheric pressure start type (Inverter),lubrication oil, lubrication chamber evacuation,Horizontal exhaust direction type (PMB2400D only) | ||||||
Atmospheric pressure start type Inverter specification/voltage | I2,A2/200V~240V(50Hz/60Hz) | ||||||
I4,A4/380V~480V(50Hz/60Hz) |
